Just Screen,
No Distractions
GT-2100 Series POS Terminals
Enhance UX with an Ultra-Narrow Bezel
The Most Elegant & Sophisticated POS Terminal Ever
Just Screen, No Distractions
Ultra-narrow Bezel for Maximum Display Area
GT-2115/GT-2115E POS Terminal features an ultra-narrow bezel, maximizing display area and minimizing overall size for a sleek, space-saving design ideal for tighter environments.

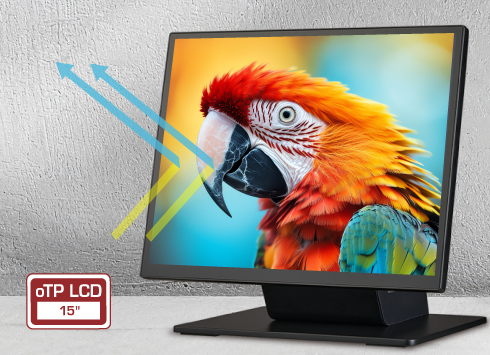

Brightness Meets Clarity
400 Nits On-Cell Touch Panel for Superior Visuals
Featuring an On-cell touch panel with a brightness of 400 nits, GT-2115/GT-2115E POS Terminal offers high transparency and improved optical performance. This enhances visual clarity, reduces parallax and delivers a smoother user experience.

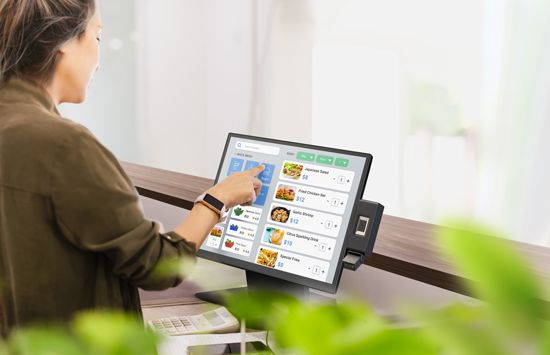

Seamless Touch, Effortless Precision
Improve Touch Responsiveness for More Seamless Interaction
GT-2115/GT-2115E POS terminal enhances touch responsiveness, ensuring a smoother and more intuitive user experience. By optimizing touch sensitivity and reducing lag, it enables faster and more accurate interaction, creating a seamless connection between users and technology.
Adapt to Your Application
Dual-Sided Attachments for Enhanced Versatility

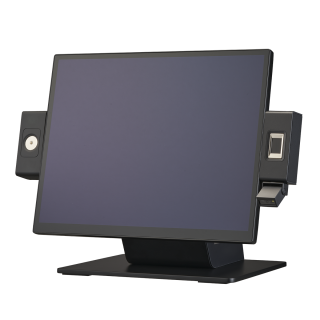

Support attachments on both the left and right sides, offering greater flexibility and a more comprehensive range of options, this expanded support not only accommodates additional attachments, but also allows for use by both left and right handed users, providing flexible installation to meet diverse needs.

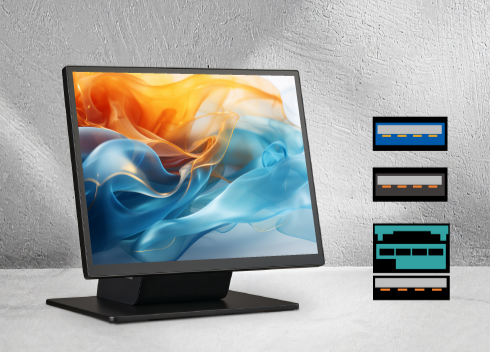

Optimize Connectivity
Extended I/O Expansion
GT-2115/GT-2115E POS Terminal offers versatile expansion options to suit diverse applications, supporting additional USB and Serial ports, along with a 2.5GbE LAN port for high-speed data transmission.
Powerful Performance,
Built to last
Enhanced efficiency and durability for long-lasting reliability
GT-2115/GT-2115E equipped with the Intel Twin Lake N150 processor, delivering reliable performance with low power consumption for everyday POS operations. Furthermore, its IP-65 certified front panel protection ensures water and dust resistance, while the fan-free design minimizes the risk of mechanical failure, and provides reliable, uninterrupted performance.
仕様
| System-Configuration | GT-2115E | GT-2115 |
|---|---|---|
| Processor | Intel Twin Lake N150 | Intel Twin Lake N150 |
| System Memory | DDR5 SO-DIMM x 1, max. 16 GB | DDR5 SO-DIMM x 1, max. 16 GB |
| Storage Device | M.2 SSD x 2 (one support both SATA and PCIe signal) | M.2 SSD x 2 (one support both SATA and PCIe signal) |
| RAID Function | N/A | N/A |
| Intel vPro Support | N/A | N/A |
| TPM | TPM 2.0 , Intel PTT | TPM 2.0 , Intel PTT |
| Power Supply | 24V/ 120W | 24V/ 60W |
| OS Support | Windows 11 IoT LTSC | Windows 11 IoT LTSC |
| Display & Touch | ||
| LCD | 15” oTP LCD (Typ. 400 nits) | 15” oTP LCD (Typ. 400 nits) |
| Resolution | 1024 x 768 | 1024 x 768 |
| Touch | On-cell touch panel with multi-touch support (IP65 on front panel) | On-cell touch panel with multi-touch support (IP65 on front pane |
| I/O Expansion | ||
| Serial Port | RJ50 x 1 (Support 5V/12V support on all COM ports) | RJ50 x 1 (Support 5V/12V support on all COM ports) |
| Standard USB Port | USB 3.0 x 4 (on I/O plate) | USB 3.0 x 4 + USB 2.0 x 2 (on I/O plate) |
| PoweredUSB Port | PUSB 12V x 1 + PUSB 24V x 1 (on I/O plate) | N/A |
| LAN Port | 2.5GbE x 1 | 2.5GbE x 1 |
| Display Port | Internal USB-C x1 for 2nd display only USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor |
Internal USB-C x1 for 2nd display only USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor |
| CR Port | CR port x 1 (Control 2 x cash drawer, 24V support only | CR port x 1 (Control 2 x cash drawer, 24V support only) |
| Audio | Internal 2W speaker x 2 | Internal 2W speaker x 2 |
| Expansion Slot | M.2 2230 x 1 for Wi-Fi 6 / BT 5.2 module | M.2 2230 x 1 for Wi-Fi 6 / BT 5.2 module |
| Dimension | ||
| Dimension (W x D x H in mm) | 321.6 x 207 x 295.5 | 321.6 x 207 x 292.5 |
| Weight (N. W. in kg) | 3.95 kg | 3.95 kg |
| Environmental | ||
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | 20°C - 70°C, 10%RH - 90%RH | -20°C - 70°C, 10%RH - 90%RH |
| Attachment Options | ||
| Customer Facing Display | LM/TM-5011LC、LM/TM-5011PC、PD-2611UE | LM/TM-5011LC、LM/TM-5011PC、PD-2611UE |
| External I/O Module | GT-470 (PUSB 12V x 2 + DC in/out) GT-570 (RJ50 x 2 + USB 2.0 x 4) GT-580 (RJ50 x 2 + USB 3.0 x 4) |
GT-470 (PUSB 12v x 2) GT-570 (RJ50 x 2 + USB 2.0 x 4) GT-580 (RJ50 x 2 + USB 3.0 x 4) |
| Side Attachment | RA-101、RA-103、RA-104、RA-105、RA-106、RA-301、RA-311、RA-304、RA-305、RA-307 | RA-101、RA-103、RA-104、RA-105、RA-106、RA-301、RA-311、RA-304、RA-305、RA-307 |
| Base | GTS Base with Optional External I/O Expansion Kit (GT-470/570/580) Support | GTS Base with Optional External I/O Expansion Kit (GT-470/570/580) Support |
*製品の仕様およびモデル構成は変更されることがあり、世界の地域によって異なる場合があります。
