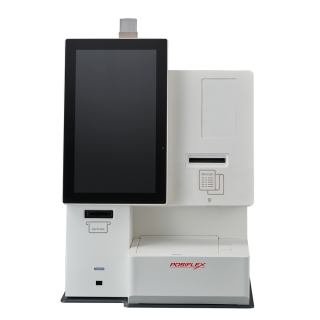

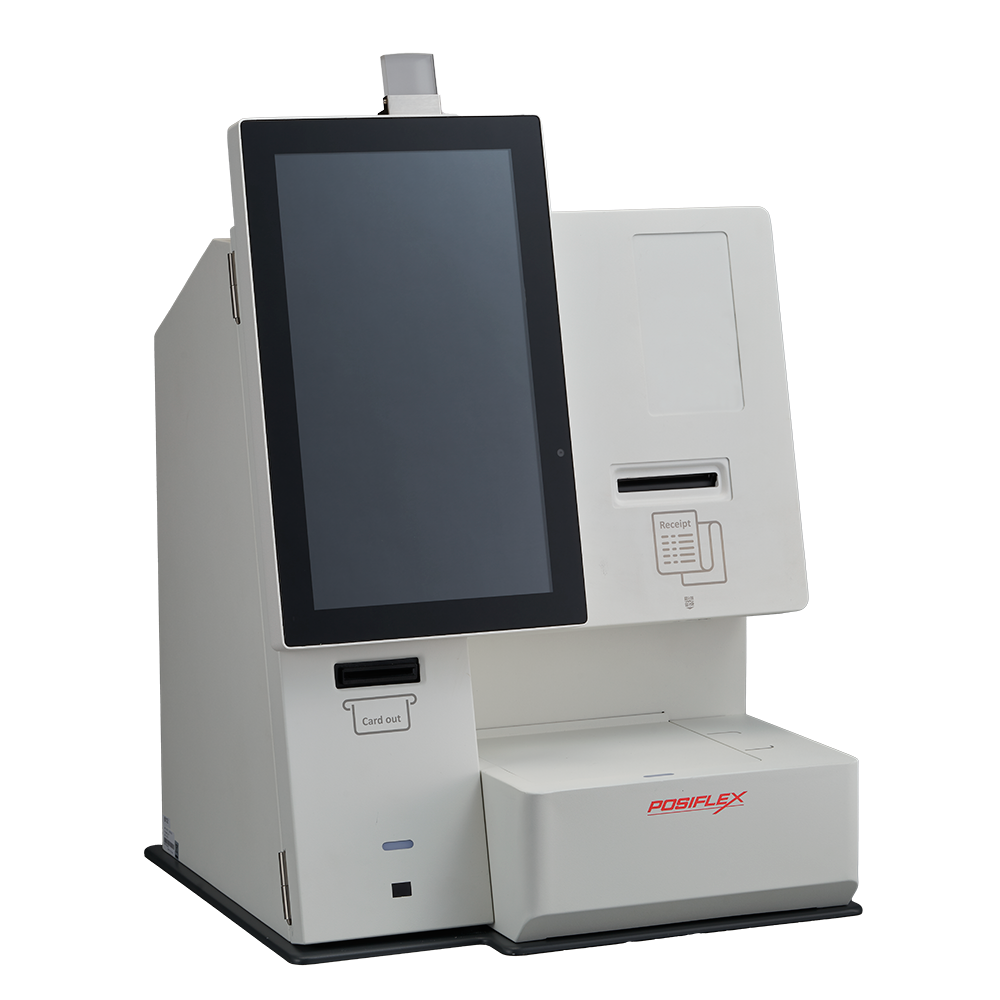

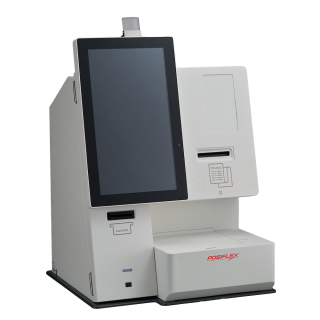

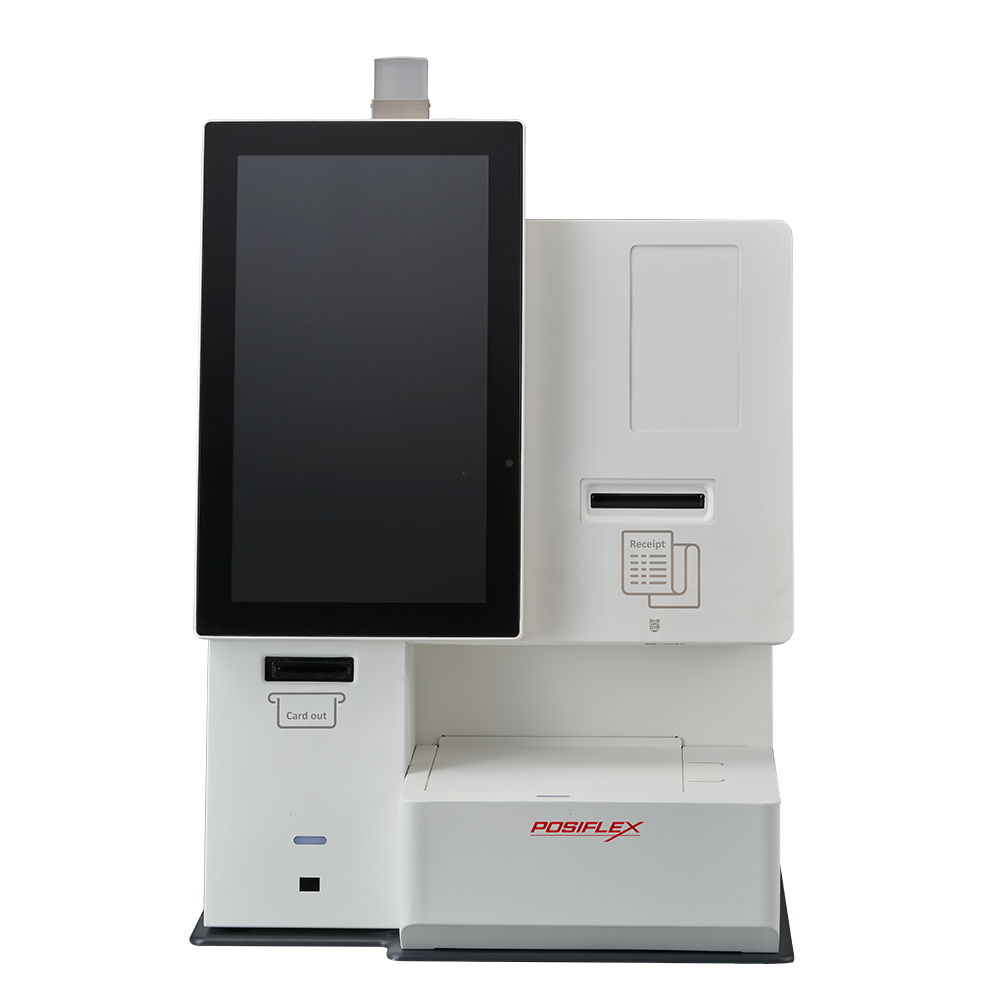

HK-1600 系列
直覺式的自助入住/退房
HK-1600 系列擁有直觀且人性化的設計，提供個人化體驗，讓顧客擁有更多選擇，同時解放您的員工免於繁瑣任務。
高度整合的自助服務設備 Kiosk
高度整合的卡片回收機、印表機、護照/身分證掃描器及支付設備。
高度安全性
透過 AI 和護照/身分證掃描器進行身分認證與驗證，增強安全性。
提升服務品質
飯店自助入住/退房 Kiosks 可幫助減少排隊時間和摩擦，提升客人的入住體驗。
解決勞動力短缺
飯店自助服務設備 Kiosk 解決勞動力短缺問題，為顧客提供隨時可用的個人化服務選項。
規格
| System-Configuration | HK-1610 | HK-1632 | HK-1652 |
|---|---|---|---|
| Processor | Rockchip RK3399 | Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache | Intel Tiger Lake UP3 Core i3-1115G4E , up to 3.90 GHz, 6M Cache Intel Tiger Lake UP3 Core i5-1145G7E , up to 4.10 GHz, 8M Cache |
| System Memory | DDR4 4GB | DDR4 SO-DIMM x 1, max 16GB | DDR4 SO-DIMM slot x 1, max. 32GB |
| Storage Device | default 32GB eMMC + microSD slot x 1 | M.2 SSD [SATA Signal Only] x 1 | M.2 SSD (SATA Signal Only) x 1 |
| Intel vPro Support | N/A | N/A | Yes, depends on CPU installed |
| TPM Support | N/A | TPM 2.0 | TPM 2.0 |
| Power Supply | 24V/120W | 24V/120W | 24V/120W |
| OS Support | Android 9.0*/Android 10.0 with GMS | Windows 10 IoT LTSC / Windows 11 LTSC | Windows 10 IoT LTSC / Windows 11 LTSC |
| I/O-Expansion | |||
| Serial Port | RJ50 x 2, 5V/12V support on all COM ports | DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports | DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports |
| Standard USB Port | USB 3.0 x 1 + USB 2.0 x 5 | USB 3.0 x 2 + USB 2.0 x 6 | USB 3.0 x 4 + USB 2.0 x 4 |
| OTG USB | Micro-USB x 1 | N/A | N/A |
| Display Port | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| LAN Port | 10/100 Mb x1, 10/100/1000 Mb x1 | 10/100/1000 Mb x 2 | 10/100/1000 Mb x 2 |
| Audio | Internal 3W speaker x 1 | Internal 3W speaker x 1 | Internal 3W speaker x 1 |
| Expansion Slot | N/A | 1 x M.2 2230 for Wi-Fi/BT | 1 x M.2 2230 for Wi-Fi/BT |
| Display & Touch | |||
| LCD | 15.6” TFT LCD with LED backlight | 15.6” TFT LCD with LED backlight | 15.6” TFT LCD with LED backlight |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Touch | PCAP supporting multi-touch | PCAP supporting multi-touch | PCAP supporting multi-touch |
| Dimension | |||
| Dimension(W x D x H in mm) | 460.6 x 441.3 x 677.8 | 460.6 x 441.3 x 677.8 | 460.6 x 441.3 x 677.8 |
| Weight(N. W. in kg) | 25.5 kg | 25.5 kg | 25.5 kg |
| Environmental | |||
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH | 0°C - 40°C, 20%RH - 90%RH | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH | -20°C - 70°C, 10%RH - 90%RH | -20°C - 70°C, 10%RH - 90%RH |
| Standard Components | |||
| Status Indicator | RGB Color LED Indicator | RGB Color LED Indicator | RGB Color LED Indicator |
| Proximity Sensor | 1. Range from 45cm ~ 80cm (for dark color object) 2. Range from 45cm ~ 150cm (for light color object) |
1. Range from 45cm ~ 80cm (for dark color object) 2. Range from 45cm ~ 150cm (for light color object) |
1. Range from 45cm ~ 80cm (for dark color object) 2. Range from 45cm ~ 150cm (for light color object) |
| Camera Module | 1MP wide angle camera | 1MP wide angle camera | 1MP wide angle camera |
| Printer Module | 3" thermal printer w/auto cutter, 250 mm/sec (max.) | 3" thermal printer w/auto cutter, 250 mm/sec (max.) | 3" thermal printer w/auto cutter, 250 mm/sec (max.) |
| Scanner Module | 2D barcode scanner | 2D barcode scanner | 2D barcode scanner |
| Optional-Components | |||
| EMV Payment Device Bracket Support | Custom bracket support for various EMV payment devices. | Custom bracket support for various EMV payment devices.(Posiflex does not sell the EMV payment devices, but can provide bracket support with an additional charge) | Custom bracket support for various EMV payment devices.(Posiflex does not sell the EMV payment devices, but can provide bracket support with an additional charge) |
| 4G / LTE Communication | Support selected bands & countries with full SIM slot by request (cannot coexist with Wi-Fi) | Wi-Fi 5 & BT4.2 (USB dongle; cannot coexist with 4G/LTE) | Wi-Fi 5 & BT4.2 (USB dongle; cannot coexist with 4G/LTE) |
| WiFi | Wi-Fi 5 & BT4.2 (USB dongle; cannot coexist with 4G/LTE) | Wi-Fi 5 & BT4.2 (USB dongle; cannot coexist with 4G/LTE) | Wi-Fi 5 & BT4.2 (USB dongle; cannot coexist with 4G/LTE) |
| Standard Components | |||
| Card Dispenser/Recycler | Supporting ISO/IEC 14443 Type A/B contactless cards; Storing up to 150pcs cards, 0.9-1.4mm thickness card is standard | Supporting ISO/IEC 14443 Type A/B contactless cards; Storing up to 150pcs cards, 0.9-1.4mm thickness card is standard | Supporting ISO/IEC 14443 Type A/B contactless cards; Storing up to 150pcs cards, 0.9-1.4mm thickness card is standard |
| Optional-Components | |||
| Passport Reader Bracket | DESKO PENTA Cube / 4X Cube | DESKO PENTA Cube / 4X Cube, Plustek X50 | DESKO PENTA Cube / 4X Cube, Plustek X50 |
*產品規格和型號配置會因不同地區而有所變更。
