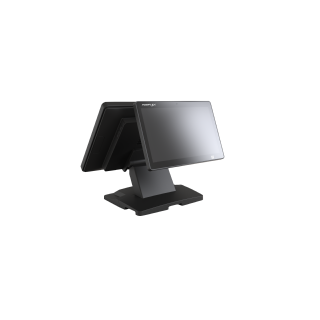

LM-5011

  • LM-5011 features robust design a sleek aesthetic. With its durable housing, it offers support for optional attachments such as MSR, RFID, a fingerprint sensor, and an iButton. These options provide you with the flexibility to customize your retail business to suit your specific needs. As for the 2D barcode scanner, we have seamlessly integrated it on the bottom side of the screen, contributing to a tidy and organized counter.
Compare
  • LM-5011
Get Quote
  • LM-5011

Specification

Display LM-5011
LCD 10.1" TFT LCD
Resolution 1280 x 800
Active Area 216.96 (H) x 135.60 (V)
Pixel Pitch 0.1695 (H) x 0.1695 (V)
Pixel Arrangement RGB Vertical Stripe
Viewing Angle 85/85/85/85 degree (U/D/L/R)
Contrast Ratio 800:1
Response Time 25 ms
Brightness 350 nits
Interface N/A
Specification
Power Supply 12V from ZT-series 40-Pin connector
Support
System Supported ZT series
VESA Mounting Support Yes, 75 x 75
Options
Options MSR; iButton; 2D Scanner; 1MP camera; RFID; Fingerprint Sensor
LM-5011
Touch@Touch Type N/A
Touch@interface USB
*product specifications and model configurations are subject to change and may vary by global region.
Uploaded Date
Description
Version
Size
Language
File Type
Download
2024.06.03

User Manual for TM/LM-5011 & TM/LM-5011P (EN)

B0
1.1 MB
English
User Manual
2024.01.18

Advanced Manual H20S for TM/LM-5xxx 2D barcode

A0
7.2 MB
English
User Manual
2023.07.10

Posiflex USB Virtual Com Port Driver for Windows - v5.19k

v5.19k
1.6 MB
-
Driver & Utility
2023.09.11

Posiflex USB Virtual Com Port Driver for Windows - v5.19l

v5.19l
1.6 MB
-
Driver & Utility
2023.09.11

Posiflex USB Virtual Com Port WHQL Driver for Win11/Win10/Win7

v5.20
22 KB
-
Driver & Utility
